LSI |
|
|
Technical data / Technische Daten |
|
|
Type / Gerätetyp |
RAID Controller |
|
Formfaktor |
Low-profile, Full-profile Bracket |
|
Interfaces / Schnittstellen |
2x SAS SFF8088 x4 external connectors |
|
Bus Interface |
PCI- Express x8 |
|
RAID Levels |
0, 1, 5, 6, 10, 50, 60 |
|
Cache Memory / Speicher |
512MB 667MHz DDR II SDRAM |
|
Processor / Prozessor |
LSI SAS1078 RAID on Chip (ROC) |
|
Data Transfer Rate / Datenübertragungsrate |
Max. 3 Gbps pro Port |
|
Compatibility / Kompatibilität |
BM System x3200 M2, IBM System x3250 M2, IBM System x3250 M3, IBM System x3350, IBM System x3550, IBM System x3550 M2, IBM System x3650, IBM System x3650 M2, IBM System x3655, IBM System x3755 |
|
Delivery / Lieferumfang |

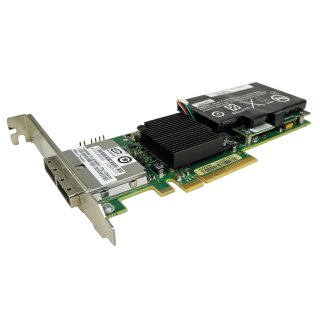

1x MR SAS 8880EM2 RAID Controller |
|
|
|
| Herstellernummer: | L3-25039-01D |
| IBM FRU P/N: | 43W4341 |
| Marke: | LSI Logic |
| RAID-Level: | 0, 1, 5, 6, 10, 50, 60 |
| Sockeltyp: | PCIe x8 |
| Versandgewicht: | 0,50 kg |
| Artikelgewicht: | 0,30 kg |
