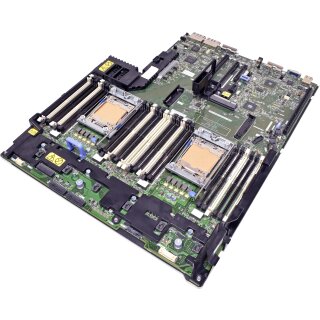

IBM X3650 M5 Mainboard 00YJ424 Intel FCLGA2011 DDR4 SDRAM

IBM

IBM X3650 M5 Mainboard Intel FCLGA2011-3 DDR4 SDRAM

P/N: 00YJ424

Technical data / Technische Daten

Manufacturer / Hersteller

IBM

CPU socket / Sockel

FCLGA2011-3

CPU Slots / CPU-SteckplätzeCPU Slots / CPU-SteckplätzeCPU Slots / CPU-SteckplätzeCPU Slots / CPU-Steckplätze

2

Installed CPUs / Installierte CPUs

Keine

Compatible CPUs

Xeon E5-2600 V3 Series

Memory Slots / Arbeitsspeicher-Steckplätze

24 x DIMM DDR4 SDRAM

Installed Memory / installierter Arbeitsspeicher

Keine

Expansion Slots / Erweiterungssteckplätze

Up to nine slots. Slots 4, 5, and 9 are the standard slots on the system planar, and the remaining
slots depend on the riser cards installed. The slots are as follows:

Slot 1: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, full-length (PCIe x16 slot is double-wide)
Slot 2: PCIe 3.0 x8; full-height, full-length (not present if the slot 1 is PCIe x16)
Slot 3: PCIe 3.0 x8 or ML2; full-height, half-length
Slot 4: PCIe 3.0 x8; low profile (vertical slot on system planar)
Slot 5: PCIe 3.0 x16; low profile (vertical slot on system planar)
Slot 6: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, full-length (PCIe x16 slot is double-wide)
Slot 7: PCIe 3.0 x8; full-height, full-length (not present if the slot 6 is PCIe x16)
Slot 8: PCIe 3.0 x8; full-height, half-length
Slot 9: PCIe 3.0 x8 (dedicated for an internal RAID controller)

Slots 5, 6, 7, and 8 require the second processor to be Installed.

external Interfaces / externe Schnittstellen

4 x RJ-45 Ethernet 10/100/1000 Base-T
1 x RJ-45 Ethernet Management
2 x USB 3.0
2 x USB 2.0
1 x VGA

Operation System / Betriebssytem

no / ohne

Delivery / Lieferumfang

1 x IBM X3650 M5 Mainboard

Drivers and other software are not included. /
Treiber und Software sind nicht im Lieferumfang enthalten
