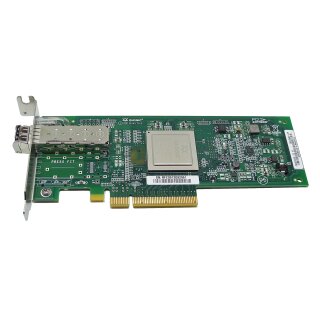

IBM QLogic QLE2560-IBMX FC Single-Port 8Gb PCIe x8 Network Adapter 42D0503 LP

QLogic

IBM QLE2560-HP FC Single-Port 8 Gbit PCI-E x8 Network Adapter

 Modell: QLE2560-IBMX
IBM PN: 42D0503

Technical data / Technische Daten

Manufacturer / Hersteller

QLogic Inc.

Type / Gerätetyp

Fibre Channel  Network Adapter

Formfaktor

FULL-profile, Full-bracket

Fibre Channel Protokoll

FC-AL, FC-AL2, FCP-3-SCSI, FC-Tape, FC-IP

Fibre Channel Class of Service

2 und 3

Interfaces / Schnittstellen

1 x 8Gb FC SFP+ Port (1x 8Gb Transceivers inclusive)

Bus Interface

PCI-Express  x8 2.0

Data Transfer Rate / Datenübertragungsrate

8/4/2 Gbps

OS / Betriebssysteme

Microsoft Windows Server™ 2008, 2008R2, 2012, 2012R2
Red Hat Enterprise Linux 5, 6, 7
SUSE Linux Enterprise Server 10, 11, 12
VMware ESX 4.1, ESXi 4.1
VMware vSphere (ESXi) 5.0, 5.1, 5.5, 6.0

Compatibility / Kompatibilität

System x3250 M6, x3550 M5, nx360 M5, x3100 M5, x3250 M5, x3500 M5,x3550 M5, x3650 M5,
x3850 X6/x3950 X6, x3500 M4, x3530 M4,
x3550 M4, x3630 M4, x3650 M4, x3750 M4,
dx360 M4, nx360 M4

Standards

EN60950, EN60825, CE Mark, EN55022, CISPR22, EN55024, EN61000, FCC Part 15 Class A, VCCI, UL, BSMI, MIC, RoHS,

Delivery / Lieferumfang

1 x QLogic QLE2560 Network Adapter
1 x 8Gb SFP+ Transceiver

More information and details can be found on the pages of the manufacturer.
Weitere Informationen und Details finden Sie auf den Seiten des Herstellers.

 All parts are used but 100% OK!!!
Alle Teile sind gebraucht aber 100 % in Ordnung!!!
