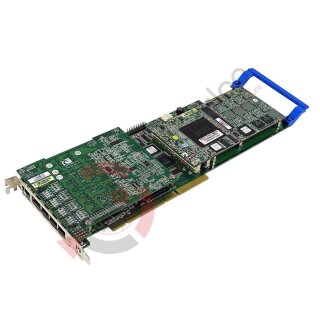

AudioCodes IPM260A/120RT/H100/MVIP/UNI TrunkPack PCI VoIP Media Processing Blade

AudioCodes

 IPM260A/120RT/H100/MVIP/UNI TrunkPack PCI VoIP Media Processing Blade

Modell: IPM260A/120RT/H100/MVIP/UNI
MPN: 23-027-006 Rev. A01

Technical data / Technische Daten

Manufacturer / Hersteller

AudioCodes

Type / Gerätetyp

VoIP Media Processing Blade

Formfaktor

Plug-In Modul  (Full-size PCI E card)

Data Link Protokoll

Ethernet, Fast Ethernet

Conferencing / Konferenzschaltungen

Supports up to 248 ports of mixed lP, PSTN and TDM participants
Maximum simultaneous 3-way conferences per blade: 80
Maximum full-duplex parties per conference bridge: 64 endpoints
Supports various conference control modes

Fax

Real-time fax over IP/T.38 compliant, automatic fallback to G.711
and VBD for up to super G-3 fax machines,
Support for Fax Termination (Available with AudioCodes S/W based stack)

Interfaces / Schnittstellen

4 x 10/100Base-T Ethernet- RJ-45 Ports
1 x Telephony RJ48C Port

Bus Interface

PCI-X 32/64 bit, 33/66MHz

Voice

G.711, G.723.1, G.729A/B, G.726,G.727, Netcodem, MS-GSM, GSM-FR,
iLBC , AMR, EVRC, EG.711
Additional coders supported Voice Activity Detection (VAD),
Comfort Noise Generation (CNG)
Transcoding of LBR/HBR to any LBR/HBR stream

Data Transfer Rate / Datenübertragungsrate

100 Mbps

Network / Netzwerk Management

SNMP V2c: Standard MIB-2, dS1 MIB, Audiocodes’ proprietary MIB,
Embedded Web Serv

OS / Betriebssysteme

WindowsTM 2000, Windows™ XP Professional, Windows™ 2003 Server,
Linux Red Hat™ 9, The Fedora Project™ Core 5, Debian 3.1, SUSE 10.1,
Red Hat Enterprise Linux ES, Solaris™ Version 9,10 on InterlTM,
SparcTM 32-bit / 64-bit

Standards

FCC Part 15 Class B, CE, EN55022, EN60950, EN55024, EN300 386,
ETS300 019

More information and details can be found on the pages of the manufacturer.
Weitere Informationen und Details finden Sie auf den Seiten des Herstellers.

 All parts are used but 100% OK!!!
Alle Teile sind gebraucht aber 100 % in Ordnung!!!
